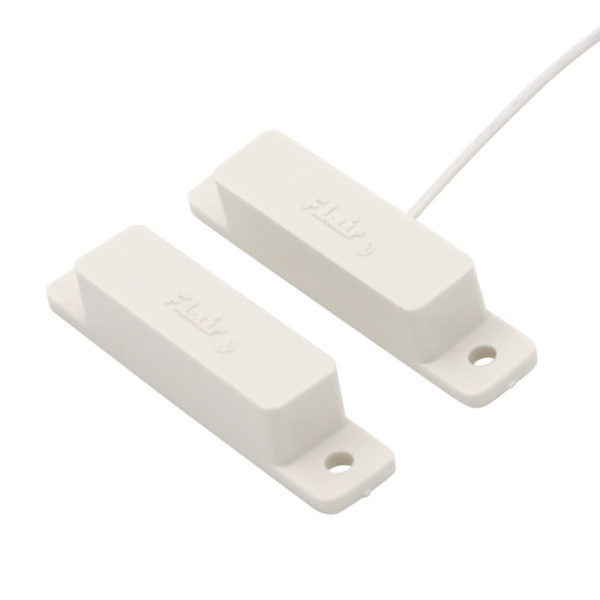

1000-24S, 1000-22S, 1000-34S: 2 1/2″ Surface Mount Magnetic Contact Series

Category:

Description

Surface Mount Contacts come standard in NC, NO, SPDT and DPDT electrical configurations. All sizes available, terminals or wires, screw and tape mounting. We can also customize these contacts to meet your specific needs.



  • Specifications

    Part Number

    1000-24S, 1000-22S, 1000-34S

    Color

    White, Brown, Gray

    Electrical Rating

    1000-24S: Maximum 100 VDC, 50 ma., 10 W, 1000-22S and 1000-34S: Maximum 30 VDC, 20 ma., 3 W

    Gap

    1″ and 1 1/4″+

    Lead Length

    12″ Jacketed Wire Leads

    Loop Type (with magnet present)

    1000-24S: Normally Closed, 1000-22S: Normally Open, 1000-34S: SPDT

    Size

    1/2″ H x 2 1/2″ L

    Downloads

    Icon

    1000-24S Data Sheet

    file(s) 34.39 KB
    Download
