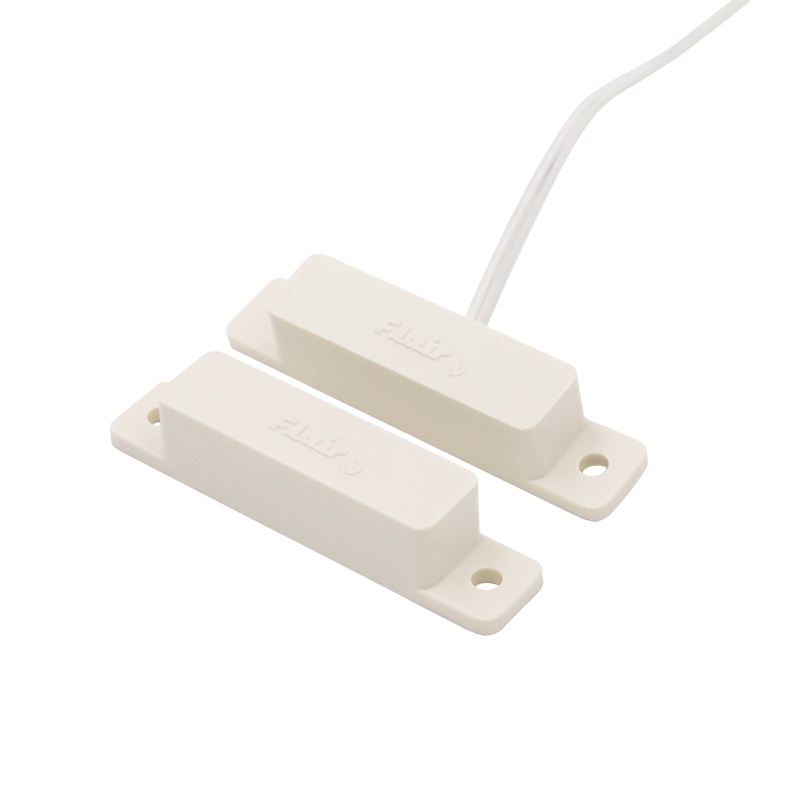

1000-24SW, 1000-22SW, 1000-34SW: 2 1/2″ Surface Mount Contact

1000-24SW, 1000-22SW, 1000-34SW: 2 1/2″ Surface Mount Contact

Surface Mount Contacts come standard in NC, NO, SPDT and DPDT electrical configurations. All sizes available, terminals or wires, screw and tape mounting. We can also customize these contacts to meet your specific needs.



Request a Quote

  • Specifications

    Part Number

    1000-24SW, 1000-22SW, 1000-34SW

    Color

    White, Brown, Gray

    Electrical Rating

    1000-24SW: Maximum 100 VDC, 50 ma., 10 W, 1000-22SW and 1000-34SW: Maximum 30 VDC, 20 ma., 3 W

    Gap

    1 1/2″

    Lead Length

    12″ Center Jacketed Leads

    Loop Type (with magnet present)

    1000-24SW: Normally Closed, 1000-22SW: Normally Open, 1000-34SW: SPDT

    Size

    2 1/2″ L x 1/2″ W x 1/2″ H
